99366K4 LED in-ground luminaire
€363.00
% Regular price: €403.29 (9.99% saved)
Product information "99366K4 LED in-ground luminaire"
Manufacturer: BEGA
Material: stainless steel, clear safety glass, reflector made of anodised pure aluminium

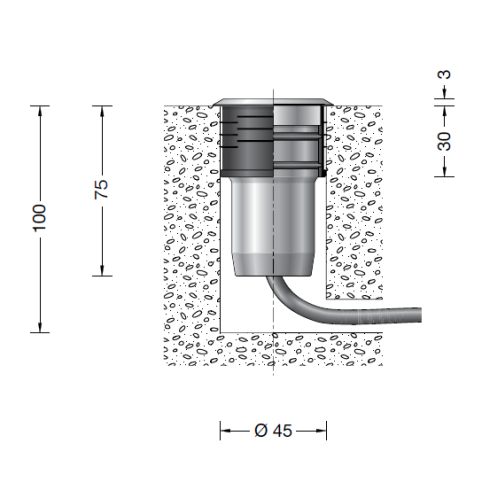

Dimensions (mm): Ø 50 x 3
Illuminant: 1.4W LED 4000K
Luminous flux (Lumen): 135
Scope of delivery: incl. illuminant
Delivery time: 1 Week
Login
Zubehör

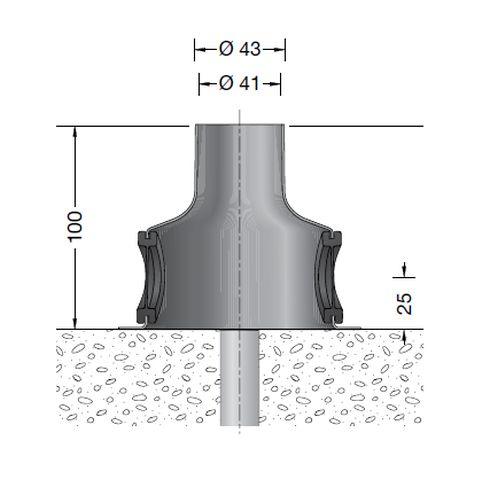

Installation housing made of stainless steel for drive-over in-ground luminaires for pressure loads up to 1.000 kg. The foundation of the installation housing must be carried on firm subsoil. To achieve an exact position and firm stability the installation housing must be fixed on the subsoil. Maximum drainage must be provided so that any ingressing surface water can drain out of the installation housing. The top edge of the installation housing must be flush with the ground surface. The conductor connection provided by the customer must be carried out in the corresponding protection class and safety class of the luminaire. Manufacturer: BEGAMaterial: stainless steelDimensions (mm): Ø 115 x 100Delivery time: 1 Week
Suitable for LED luminaires made by manufacturers BEGA and Glashütte Limburg.Safety transformer according to DIN EN 61558/VDE 0570 Part 2-6; 230V~ 50-60 Hz/24 V DC. Encapsuled in cast resin. BEGA power supply units are also suitable for the operation of several LED luminaires. In this case, the maximum wattage of the power supply unit which amounts to 25 Watt must not exceeded. Manufacturer: BEGAMaterial: cast resin encapsulated versionDimensions (mm): 55 x 215 x 50Delivery time: 1 Week
