BEGA garden illumination that adapts to your garden
BEGA UniLink®is the new way to illuminate your garden. All you need to create effective and stylish scenarios in your garden at a professional level is a free outdoor socket and BEGA UniLink®.
Simply plug in, position the luminaires and off you go. Achieve a permanently installed, weatherproof professional system without the need for costly and time-intensive underground cabling. In the quality and design you expect from BEGA. Thanks to the sophisticated distribution box system, you can connect up to five BEGA UniLink® luminaires to a single power connection and position each individual luminaire freely in the garden within a radius of up to 50 metres. Distribution boxes can also be used to connect additional luminaires. This allows you to react to any situation in the blink of an eye and reposition the luminaires as you see fit. Thanks to the IP 67 standard, BEGA UniLink® is weatherproof and durable all year round.
BEGA UniLink mains plug with plug connector for portable luminaires. 0.5m cable X05RN-F FEP 2× mm² + 1G2,5mm² with mains plug (type F [Germany and Europe] / type E [France and Belgium]) and a plug connector for portable luminaires. Mains plug with protection class IP44, connector with protection class IP67 when plugged in and screwed in place. Manufacturer: BEGADimensions (mm): cable 500Delivery time: immediately
BEGA UniLink mains plug with plug connector for portable luminaires. 0.5m cable X05RN-F FEP 2× mm² + 1G2,5mm² with mains plug (type G [Great Britain]) and a plug connector for portable luminaires. Mains plug with protection class IP44, connector with protection class IP67 when plugged in and screwed in place. Manufacturer: BEGADimensions (mm): cable 500Delivery time: 1 Week
BEGA UniLink mains plug with plug connector for portable luminaires. 0.5m cable X05RN-F FEP 2× mm² + 1G2,5mm² with mains plug (type J [Switzerland and Liechtenstein]) and a plug connector for portable luminaires. Mains plug with protection class IP44, connector with protection class IP67 when plugged in and screwed in place. Manufacturer: BEGADimensions (mm): rubber cable 500Delivery time: 1 Week
BEGA UniLink mains plug with plug connector for portable luminaires. 0.5m cable X05RN-F FEP 2× mm² + 1G2,5mm² with mains plug (type L [Italy]) and a plug connector for portable luminaires. Mains plug with protection class IP44, connector with protection class IP67 when plugged in and screwed in place. Manufacturer: BEGADimensions (mm): cable 500Delivery time: 1 Week
BEGA UniLink mains plug with plug connector for portable luminaires. 0.5m cable X05RN-F FEP 2× mm² + 1G2,5mm² with mains plug (type K [Denmark]) and a plug connector for portable luminaires. Mains plug with protection class IP44, connector with protection class IP67 when plugged in and screwed in place. Manufacturer: BEGADimensions (mm): cable 500Delivery time: 1 Week
BEGA UniLink extension cable with plug connectors for portable luminaires. 5m extension cable X05RN-F FEP 2×1mm² + 1G2,5mm². 1 plug, 3 pole, with protective cap, 1 coupling, 3 pole, with protective cap, protection class IP67. Manufacturer: BEGADimensions (mm): 5000Delivery time: immediately
BEGA UniLink extension cable with plug connectors for portable luminaires. 10m extension cable X05RN-F FEP 2×1mm² + 1G2,5mm². 1 plug, 3 pole, with protective cap, 1 coupling, 3 pole, with protective cap, protection class IP67. Manufacturer: BEGADimensions (mm): 10000Delivery time: immediately

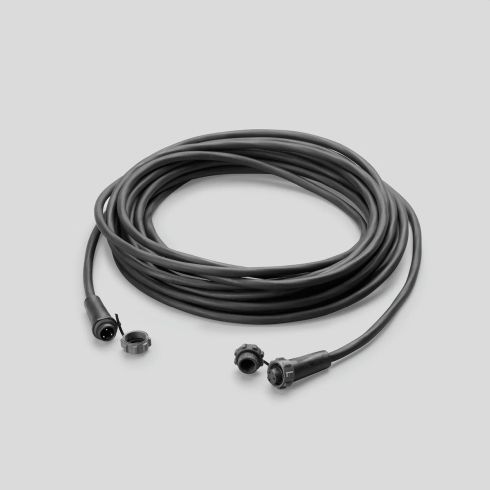

BEGA UniLink extension cable with plug connectors for portable luminaires. 20m extension cable X05RN-F FEP 2×1mm² + 1G2,5mm². 1 plug, 3 pole, with protective cap, 1 coupling, 3 pole, with protective cap, protection class IP67. Manufacturer: BEGADimensions (mm): 20000Delivery time: 1 Week
Distribution box with five connection sockets for the connection of BEGA UniLink luminaires, extension cables or additional five-way distribution boxes. The five-way distribution box is intended for above-ground applications and must not be buried. Housing moulded inside. 1 input plug connector, 5 output plug connectors. Inputs and outputs with screw-on covers. Protection class IP67. Maximum current load 6A. Connecting the BEGA UniLink system to the mains requires a mains plug, which must be ordered separately. Manufacturer: BEGAMaterial: housing made of synthetic materialDimensions (mm): 150 x 130 x 30Delivery time: immediately
0.5m connecting cable X05RN-F FEP 2×1mm² + 1G2,5mm² with BEGA UniLink plug connector. One side with coupling, 3 pole, with protective cap, protection class IP67. One side with free cable end for permanent installation by the customer. Manufacturer: BEGADimensions (mm): 500Delivery time: immediately
5m connecting cable X05RN-F FEP 2×1mm² + 1G2,5mm² with BEGA UniLink plug connector. One side with coupling, 3 pole, with protective cap, protection class IP67. One side with free cable end for permanent installation by the customer. Manufacturer: BEGADimensions (mm): 5000Delivery time: 1 Week
Electronic 48 V DC power supply unit with an output of max. 100 W for the connection of BEGA UniLink® Play luminaires, allowing easy on-ground routing without costly earthworks. Connecting cable 5m with 1 x input plug connector (plug BEGA UniLink®), 1 x output plug connector (coupling BEGA UniLink® Play) with cable length 0.3m. The power supply unit supports the operation of multiple BEGA UniLink® Play luminaires, although the maximum power of the power supply must be taken into account. Connecting the power supply unit requires a mains plug, which must be ordered separately. Manufacturer: BEGAMaterial: housing made of synthetic material (polyamide), moulded insideDimensions (mm): 190 x 73 x 42Delivery time: 1 Week
Extension cable with plug connector for portable luminaires BEGA UniLink® Play. Manufacturer: BEGAMaterial: rubber cable H05RN-F 3×0.75mm², colour graphiteDimensions (mm): length 5000Delivery time: 1 Week
Extension cable with plug connector for portable luminaires BEGA UniLink® Play. Manufacturer: BEGAMaterial: rubber cable H05RN-F 3×0.75mm², colour graphiteDimensions (mm): length 10000Delivery time: 1 Week

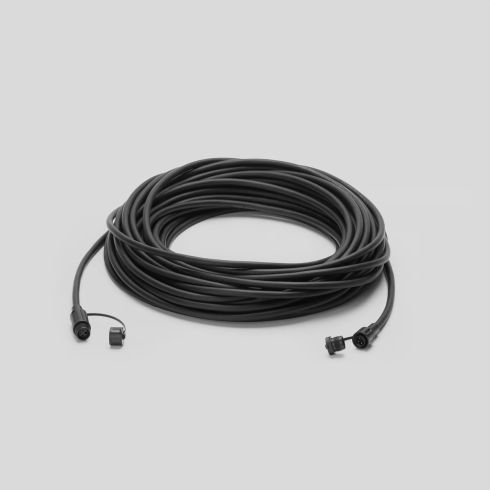

Extension cable with plug connector for portable luminaires BEGA UniLink® Play. Manufacturer: BEGAMaterial: rubber cable H05RN-F 3×0.75mm², colour graphiteDimensions (mm): length 20000Delivery time: 1 Week
Distribution box with 5 connection sockets for the connection of BEGA UniLink® Play luminaires, extension cables or additional distribution boxes. 1 input plug connector, 5 output plug connectors. Inputs and outputs with screw-on covers.
Distribution box with 2 connection sockets for the connection of BEGA UniLink® Play luminaires, extension cables or additional distribution boxes. 1 input plug connector, 2 output plug connectors. Inputs and outputs with screw-on covers. Manufacturer: BEGAMaterial: housing made of synthetic material, moulded inside, colour blackDimensions (mm): 80 x 67 x 20Delivery time: 1 Week
Using Smart Link, BEGA UniLink® Play luminaires can be controlled together and integrated into the BEGA Smart app.Zigbee 3.0 and Bluetooth 5.0. Manufacturer: BEGAMaterial: housing made of synthetic material (polyamide), moulded insideDimensions (mm): 150 x 57 x 23Delivery time: 1 Week
Floodlights in this form have been a defining design feature of the BEGA range for decades. They have received international awards for their excellent design. As illuminating classics, they set the standard for the industry. BEGA has changed their design and adapted their technology to today’s requirements very carefully. They are available with either wide beam or very wide beam light characteristics. Various private lighting applications can thus be fulfilled with a single floodlight type. Islands of light are just as achievable as accent lighting for building or garden details. Symmetrical very wide beam light distribution, half beam angle 60°. Swivel range -20°/+70°.All BEGA UniLink luminaires come with a factory-fitted, five-metre-long connecting cable with a waterproof plug connector. This can be used to connect extension cables or even five-way distribution boxes, if required. This makes it quick and easy to position several luminaires in remote locations in a garden, for example. The system can be expanded or modified at any time by means of additional five-way distribution boxes and extension cables, and with additional luminaires with BEGA UniLink plug connectors. All connection and extension cables are flexible and can easily be installed on the ground, in trees, or on structural elements.Connecting individual BEGA UniLink luminaires or a UniLink system to the mains requires a mains plug, which must be ordered separately. Manufacturer: BEGAMaterial: cast aluminium, aluminium and stainless steel, BEGA Unidure® coating technology, colour graphite, clear safety glass, earth spike made of glass fibre reinforced synthetic material, reflector made of pure anodised aluminiumDimensions (mm): luminaire head Ø 135 x 230, height 200/390, connecting cable 5000Illuminant: 9.3W LED 3000KLuminous flux (Lumen): 700Scope of delivery: incl. illuminantDelivery time: 1 Week
Floodlights in this form have been a defining design feature of the BEGA range for decades. They have received international awards for their excellent design. As illuminating classics, they set the standard for the industry. BEGA has changed their design and adapted their technology to today’s requirements very carefully. They are available with either wide beam or very wide beam light characteristics. Various private lighting applications can thus be fulfilled with a single floodlight type. Islands of light are just as achievable as accent lighting for building or garden details. Symmetrical wide beam light distribution, half beam angle 22°. Swivel range -20°/+70°.All BEGA UniLink luminaires come with a factory-fitted, five-metre-long connecting cable with a waterproof plug connector. This can be used to connect extension cables or even five-way distribution boxes, if required. This makes it quick and easy to position several luminaires in remote locations in a garden, for example. The system can be expanded or modified at any time by means of additional five-way distribution boxes and extension cables, and with additional luminaires with BEGA UniLink plug connectors. All connection and extension cables are flexible and can easily be installed on the ground, in trees, or on structural elements.Connecting individual BEGA UniLink luminaires or a UniLink system to the mains requires a mains plug, which must be ordered separately. Manufacturer: BEGAMaterial: cast aluminium, aluminium and stainless steel, BEGA Unidure® coating technology, colour graphite, clear safety glass, earth spike made of glass fibre reinforced synthetic material, reflector made of pure anodised aluminiumDimensions (mm): luminaire head Ø 135 x 230, height 200/390, connecting cable 5000Illuminant: 9.3W LED 3000KLuminous flux (Lumen): 700Scope of delivery: incl. illuminantDelivery time: 1 Week
Three portable garden floodlights with earth spike and 5m connecting cable with plug connector. For effective illumination of plants, smaller trees or objects in private gardens. Half beam angle 24°. Swivel range -30°/+90°.All BEGA UniLink luminaires come with a factory-fitted, five-metre-long connecting cable with a waterproof plug connector. This can be used to connect extension cables or even five-way distribution boxes, if required. This makes it quick and easy to position several luminaires in remote locations in a garden, for example. The system can be expanded or modified at any time by means of additional five-way distribution boxes and extension cables, and with additional luminaires with BEGA UniLink plug connectors. All connection and extension cables are flexible and can easily be installed on the ground, in trees, or on structural elements.Connecting the UniLink system to the mains requires a mains plug, which must be ordered separately. Manufacturer: BEGAMaterial: housing and earth spike made of glass-fibre reinforced polyamide, colour graphite, safety glass with optical structure, reflector surface made of pure aluminium, silicone gasket, 3 x cable between distributor and floodlights 3000Dimensions (mm): luminaire head Ø 110 x 110, height 180/370, connecting cable 5000Illuminant: 14W LED 3000KLuminous flux (Lumen): 975Scope of delivery: incl. illuminantDelivery time: 1 Week
Compact floodlight with earth spike for the illumination of objects, plants and building details in private areas. Economical and long-lasting luminaires that can be used for less intense illumination, as well as impressive accent lighting. Half beam angle 50°. Swivel range -45°/+70°.All BEGA UniLink luminaires come with a factory-fitted, five-metre-long connecting cable with a waterproof plug connector. This can be used to connect extension cables or even five-way distribution boxes, if required. This makes it quick and easy to position several luminaires in remote locations in a garden, for example. The system can be expanded or modified at any time by means of additional five-way distribution boxes and extension cables, and with additional luminaires with BEGA UniLink plug connectors. All connection and extension cables are flexible and can easily be installed on the ground, in trees, or on structural elements.Connecting individual BEGA UniLink luminaires or a UniLink system to the mains requires a mains plug, which must be ordered separately. Manufacturer: BEGAMaterial: housing made of glass-fibre reinforced polyamide, colour graphite, clear safety glass, reflector made of pure anodised aluminiumDimensions (mm): luminaire head Ø Ø 100 x 130, height 175/365, connecting cable 5000Illuminant: 7.4W LED 3000KLuminous flux (Lumen): 631Scope of delivery: incl. illuminantDelivery time: 1 Week
Compact floodlight with earth spike for the wide-area illumination of objects, plants and building details in private areas. Economical and long-lasting luminaires that can be used for less intense wide-area illumination in the garden or on the house. Half beam angle 78/94°. Swivel range -45°/+90°.All BEGA UniLink luminaires come with a factory-fitted, five-metre-long connecting cable with a waterproof plug connector. This can be used to connect extension cables or even five-way distribution boxes, if required. This makes it quick and easy to position several luminaires in remote locations in a garden, for example. The system can be expanded or modified at any time by means of additional five-way distribution boxes and extension cables, and with additional luminaires with BEGA UniLink plug connectors. All connection and extension cables are flexible and can easily be installed on the ground, in trees, or on structural elements.Connecting individual BEGA UniLink luminaires or a UniLink system to the mains requires a mains plug, which must be ordered separately. Manufacturer: BEGAMaterial: housing made of glass-fibre reinforced polyamide, colour graphite, safety glass with optical structure, reflector made of pure anodised aluminium, silicone gasketDimensions (mm): luminaire head 165 x 110 x 50, height 185/375, connecting cable 5000Illuminant: 12W LED 3000KLuminous flux (Lumen): 905Scope of delivery: incl. illuminantDelivery time: 1 Week
This versatile luminaire is characterised especially by the option of adjusting the luminaire head. It can be turned by 30° in both directions, and the height is also infinitely adjustable. A luminaire for many small lighting applications in the private garden and in the terrace area. Shielded light with very wide beam light distribution on the illuminated surface. A portable luminaire which can simply be placed in lawns, flowerbeds or plants with an earth spike. If required the luminaires can swiftly be moved to a different location.All BEGA UniLink luminaires come with a factory-fitted, five-metre-long connecting cable with a waterproof plug connector. This can be used to connect extension cables or even five-way distribution boxes, if required. This makes it quick and easy to position several luminaires in remote locations in a garden, for example. The system can be expanded or modified at any time by means of additional five-way distribution boxes and extension cables, and with additional luminaires with BEGA UniLink plug connectors. All connection and extension cables are flexible and can easily be installed on the ground, in trees, or on structural elements.Connecting individual BEGA UniLink luminaires or a UniLink system to the mains requires a mains plug, which must be ordered separately. Manufacturer: BEGAMaterial: aluminium alloy, aluminium and stainless steel, BEGA Unidure® coating technology, colour graphite, vertical tube made of anodised aluminium, synthetic cover with optical structure, silicone gasketDimensions (mm): luminaire head Ø 130 x 50, height 1000/1290, connecting cable 5000Illuminant: 5W LED 3000KLuminous flux (Lumen): 480Scope of delivery: incl. illuminantDelivery time: 1 Week
